Measuring and datalogging advanced electronic Equipment

Description

With our SC and tiny equipment family you can capture, process, log and/or convert data from multiple fonts. They are focused on an autonomous an unsupervised use of short or long lasting sessions (days). It is not necessary to be an expert user or expensive training sessions. The equipment is plug&play. You only need to configure the information to capture and/or convert.

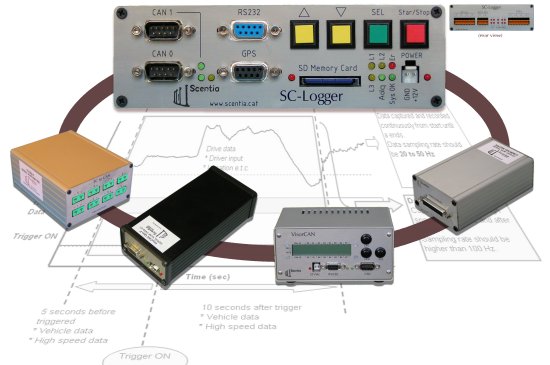

SC-Logger and tinyCAN Equipment


General characteristics of the equipment

  • Autonomous working devices. Maximum easiness of use.
  • CAN 2.0A/B. Baudrate: 125k, 250k, 500k, 1000k.
  • Battery direct supply: 9..16VDC (optional 30VDC).
  • Low power consumption devices.
  • Temperature ranges: Normal and Extended.
  • Metal housing: compact and  robust.
  • Simple configuration (RS232 or file in SD memory card).
  • LEDs showing status and functions: Supply, CAN, …

Scentia develops and produces all the devices, offering all needed support and the option to personalize them to adapt to the specific needs of each work.



Measuring and Logging Equipment

SC-Logger Plus SC-Logger Plus
Description: Multisource (Analog, Frequency, CAN & GPS) measuring and logging to SD card. Maximum easy of use.
ScopeTest verification and Analysis
Characteristics: Inputs:6 ADC(16bit), 4 Freq, 2CAN, 1GPS (ext. ant.). SD Cards up to 2G. Simple plain text file configuration. SPS from 0,2 to 200Hz. Trigger on any input. Possible multiple equipment interconnection.

SC-Logger Plus LCDSC-Logger Plus LCD
Description:
Same characteristics than SC-Logger Plus. Includes one LCD display (2x20) perfect for monitoring of captured magnitudes properly scaled.
SC-Logger CompactSC-Logger Compact
Description: Multisource (Analog, Digital, CAN) measuring and logging to SD card. Maximum easy of use.
Scope: Test verification and Analysis.
Characteristics: 8 ADC(10bit), 1 or 2 CAN. SD Cards up to 2G. Simple plain text file configuration. SPS from 0,2 to 200Hz.
SC-Logger GPSCANSC-Logger GPSCAN
Description: Measuring and logging GPS (ext. antenna) and CAN magnitudes to SD card. Maximum easy of use.
Scope: In-vehicle test supervision and “trip” logging.
Characteristics: 1 or 2 CAN. SD Cards up to 2G. Simple plain text file configuration. SPS from 0,2 to 10Hz.


Measuring and converting Analog inputs to CAN Equipment

tinyTC to CANtinyTC to CAN
Descripció: Captures Thermocouple inputs and sends them through CAN. Perfect auxiliary tool for SC-Logger.
Scope: Temperature measurement.
Characteristics: Up to 8 TCK inputs (-40..1000ºC, resolution 0,1ºC) Linealization and CJC. Possible multiple equipment interconnection.
tinyAnalog to CANtinyAnalog to CAN
Description: Captures Analog inputs and sends them through CAN. Perfect auxiliary tool for SC-Logger.
Scope
Voltage/current measurement.
Characteristics: Up to 8 Analog inputs (+-10V, 16 bits). SPS: 0,1 to 100Hz. Possible interconnection of multiple tinyAnalog and/or tinyTC.


Capturing CAN magnitudes to Analog or Freq. Equipment

tinyCAN to AnalogtinyCAN to Analog
Description: Reads CAN magnitudes and converts them to Analog Output suited for measurement and test equipment.
Scope: CAN information capture, monitoring and visualization with non CAN conventional equipment (multimeters, oscilloscopes,…).
Characteristics: Up to 12 Analog outputs (0..5V, 16 bits).
tinyCAN to FreqtinyAnalog to CAN
Description: Reads CAN magnitudes and converts them to Frequency Output suited for measurement and test equipment.
Scope: CAN information capture, monitoring and visualization with non CAN conventional equipment (multimeters, oscilloscopes,…).
Characteristics: 3 Frequency outputs (0..5V, duty 50%).


Viewing and inspecting CAN Equipment

VisorCAN (CANViewer)VisorCAN
Description: With VisorCAN you can inspect CAN messages and/or magnitudes cotained in the CAN message.
Scope: CAN messages and/or magnitudes monitoring and check.
Characteristics: 2 independent lines (any combination of CAN messages and/or magnitudes). Hold Button to display. Magnitudes scaled and formatted.


If you need any further information don’t hesitate to contact us:
